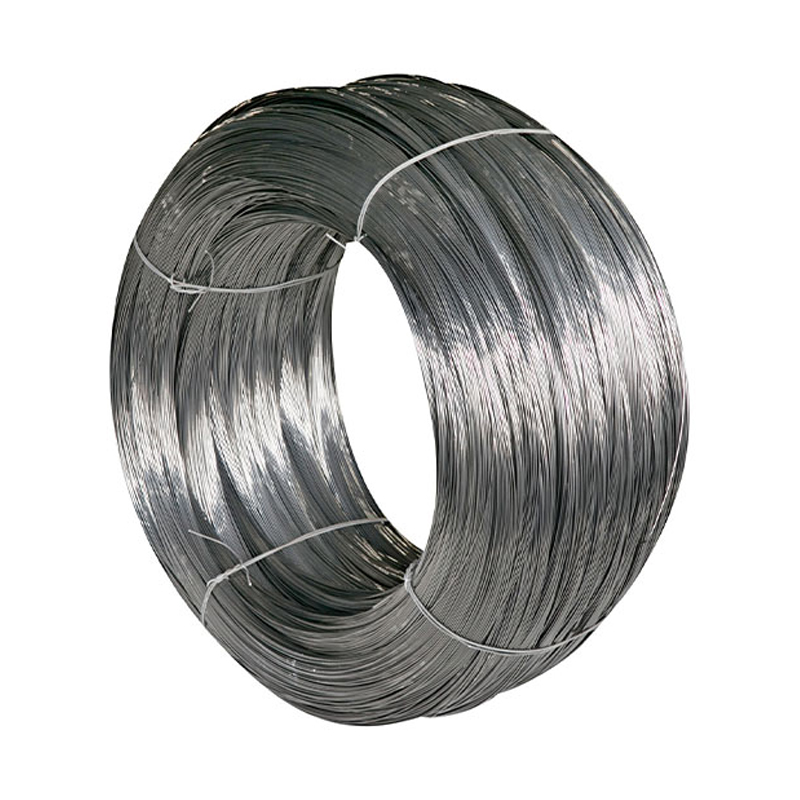

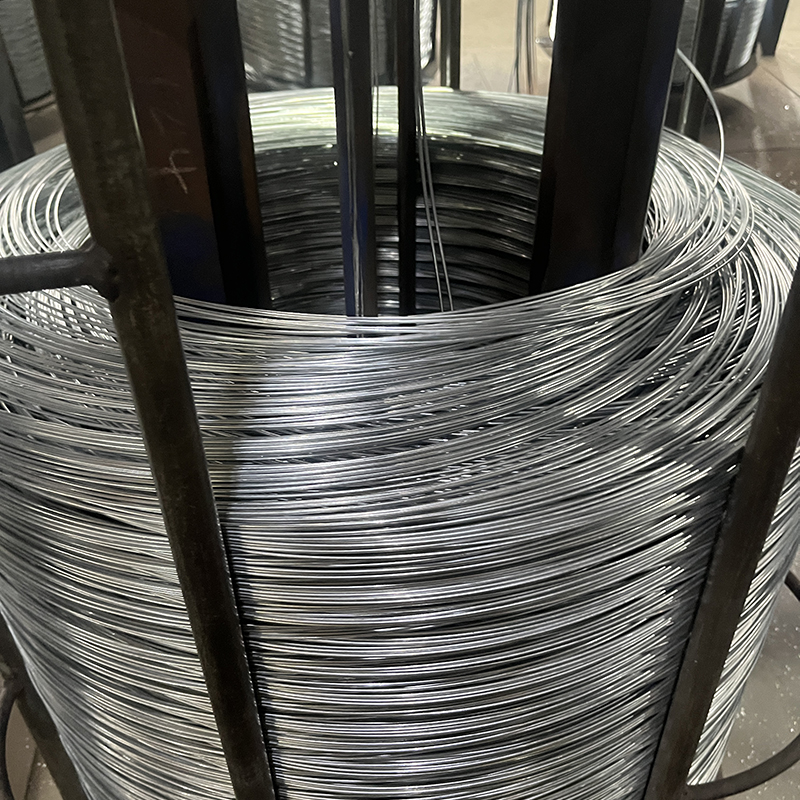

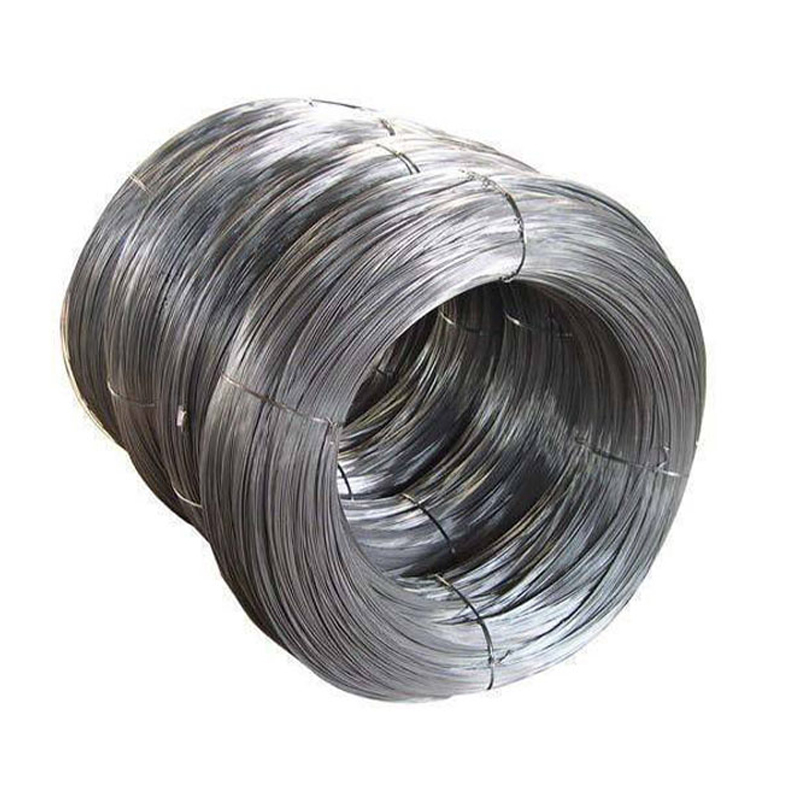

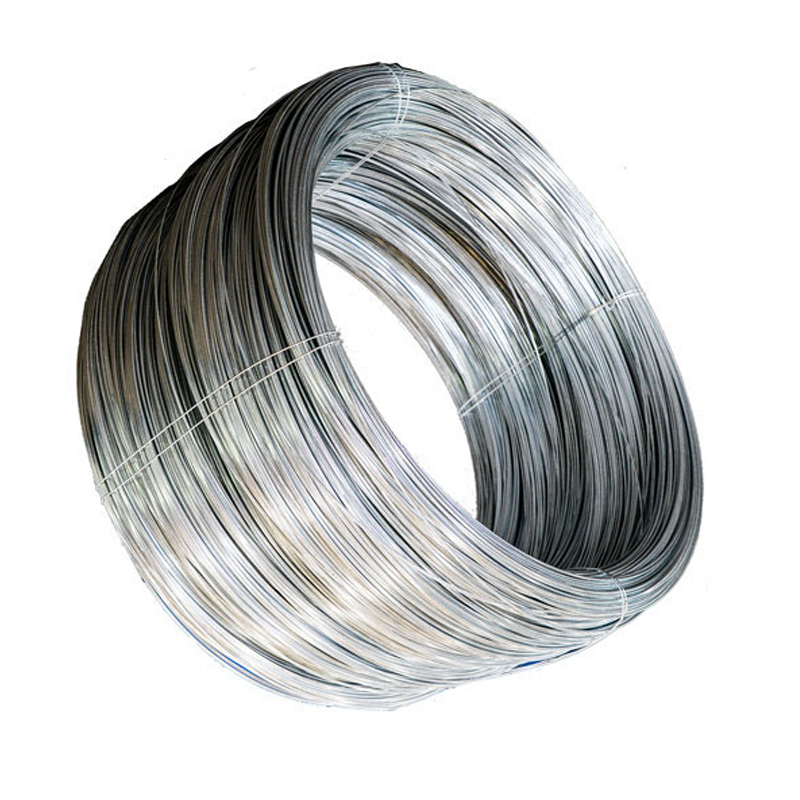

Galvanized steel wire is made by drawing high-quality carbon structural steel such as 45 #, 65 #, and 70 #, and then galvanizing (electro galvanizing or hot galvanizing).
The surface of galvanized steel wire is smooth, smooth, and free from cracks, knots, burrs, scars, and rust. The galvanized layer is uniform, has strong adhesion, long-lasting corrosion resistance, and excellent toughness and elasticity. The tensile strength should be between 900Mpa and 2200Mpa (wire diameter Φ 0.2mm- Φ 4.4mm). Number of twists（ Φ 0.5mm) should be bent more than 20 times and repeated more than 13 times.
Product Details
| Type | Hot-dip galvanized iron wire,
Electro galvanized iron wire |
| Hot-dip galvanized iron wire | Hot-dip galvanized iron wire is made with choice low carbon steel wire,
through wire drawing, acid washing and rust removing, annealing and
coiling.
It's mainly used in construction, handicrafts, woven wire mesh,
express way fencing mesh, packaging of products and other daily uses. |
Size range: BWG 8-BWG 36
Zinc coat: 30-280g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%
Packing: 1-500kgs/coil, coil with plastic cloth inside and hessian outside
or weave outside |
| Electro galvanized iron wire | Electro galvanized iron wire is made with choice mild steel, through wire
drawing, wire galvanizing and other processes. Electro galvanized iron wire
has the characteristics of thick zinc coating, good corrosion resistance,
firm zinc coating, etc.
It's mainly used in construction, express way fencing, binding of flowers
and wire mesh weaving. |
Size range: BWG 8-BWG 36
Zinc coat: 10-25g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%
Packing: 1-500kgs/coil, coil with plastic film inside and hessian cloth outside or
weave cloth outside |
| Size(mm) | Base Diameter(mm) | Transverse Rib Height(mm) | Longitudinal Rib Height(mm) | Transverse Rib Spacing(mm) | Unit Weight(kg/m) |
| 6 | 5.8±0.3 | 0.6±0.3 | ≤0.8 | 4±0.5 | 0.222 |
| 8 | 7.7±0.4 | 0.8±0.3 | ≤1.1 | 5.5±0.5 | 0.395 |
| 10 | 9.6±0.4 | 1±0.4 | ≤1.3 | 7±0.5 | 0.617 |
| 12 | 11.5±0.4 | 1.2±0.4 | ≤1.6 | 8±0.5 | 0.888 |
| 14 | 13.4±0.4 | 1.4±0.4 | ≤1.8 | 9±0.5 | 1.21 |
| 16 | 15.4±0.4 | 1.5±0.5 | ≤1.9 | 10±0.5 | 1.58 |
| 18 | 17.3±0.4 | 1.6±0.5 | ≤2 | 10±0.5 | 2.00 |
| 20 | 19.3±0.5 | 1.7±0.5 | ≤2.1 | 10±0.8 | 2.47 |
| 22 | 21.3±0.5 | 1.9±0.6 | ≤2.4 | 10.5±0.8 | 2.98 |
| 25 | 24.2±0.5 | 2.1±0.6 | ≤2.6 | 12.5±0.8 | 3.85 |
| 28 | 27.2±0.6 | 2.2±0.6 | ≤2.7 | 12.5±1.0 | 4.83 |
| 32 | 31±0.6 | 2.4±0.7 | ≤3 | 14±1.0 | 6.31 |
| 36 | 35±0.6 | 2.6±0.8 | ≤3.2 | 15±1.0 | 7.99 |
